Multidimensional Spatial Data Structures:Rectangle Data.

Rectangle Data

The rectangle data type lies somewhere between the point and region data types. It can also be viewed as a special case of the region data type in the sense that it is a region with only four sides. Rectangles are often used to approximate other objects in an image for which they serve as the minimum rectilinear enclosing object. For example, bounding rectangles are used in cartographic applications to approximate objects such as lakes, forests, hills,etc. In such a case, the approximation gives an indication of the existence of an object. Of course, the exact boundaries of the object are also stored; but they are only accessed if greater precision is needed. For such applications, the number of elements in the collection is usually small, and most often the sizes of the rectangles are of the same order of magnitude as the space from which they are drawn.

Rectangles are also used in VLSI design rule checking as a model of chip components for the analysis of their proper placement. Again, the rectangles serve as minimum enclosing objects. In this application, the size of the collection is quite large (e.g., millions of components) and the sizes of the rectangles are several orders of magnitude smaller than the space from which they are drawn.

It should be clear that the actual representation that is used depends heavily on the problem environment. At times, the rectangle is treated as the Cartesian product of two one- dimensional intervals with the horizontal intervals being treated in a different manner than the vertical intervals. In fact, the representation issue is often reduced to one of representing intervals. For example, this is the case in the use of the plane-sweep paradigm [57] in the solution of rectangle problems such as determining all pairs of intersecting rectangles. In this case, each interval is represented by its left and right endpoints. The solution makes use of two passes.

The first pass sorts the rectangles in ascending order on the basis of their left and right sides (i.e., x coordinate values) and forms a list. The second pass sweeps a vertical scan line through the sorted list from left to right halting at each one of these points, say p. At any instant, all rectangles that intersect the scan line are considered active and are the only ones whose intersection needs to be checked with the rectangle associated with p. This means that each time the sweep line halts, a rectangle either becomes active (causing it to be inserted in the set of active rectangles) or ceases to be active (causing it to be deleted from the set of active rectangles). Thus the key to the algorithm is its ability to keep track of the active rectangles (actually just their vertical sides) as well as to perform the actual one-dimensional intersection test.

Data structures such as the segment tree [9], interval tree [20], and the priority search tree [51] can be used to organize the vertical sides of the active rectangles so that, for N rectangles and F intersecting pairs of rectangles, the problem can be solved in O(N · log2 N + F ) time. All three data structures enable intersection detection, insertion, and deletion to be executed in O(log2 N ) time. The difference between them is that the segment tree requires O(N · log2 N ) space while the interval tree and the priority search tree only need O(N ) space. These algorithms require that the set of rectangles be known in advance. However, they work even when the size of the set of active rectangles exceeds the amount of available memory, in which case multiple passes are made over the data [41]. For more details about these data structures, see Chapter 18.

In this chapter, we are primarily interested in dynamic problems (i.e., the set of rectangles is constantly changing). The data structures that are chosen for the collection of the rectangles are differentiated by the way in which each rectangle is represented. One representation discussed in Section 16.1 reduces each rectangle to a point in a higher dimensional space, and then treats the problem as if we have a collection of points [33]. Again, each rectangle is a Cartesian product of two one-dimensional intervals where the difference from its use with the plane-sweep paradigm is that each interval is represented by its centroid and extent. Each set of intervals in a particular dimension is, in turn, represented by a grid file [55] which is described in Section 16.2.

The second representation is region-based in the sense that the subdivision of the space from which the rectangles are drawn depends on the physical extent of the rectangle —not just one point. Representing the collection of rectangles, in turn, with a tree-like data

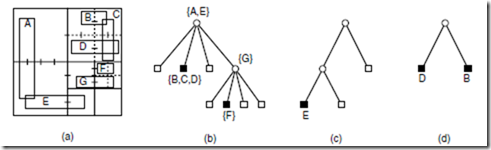

FIGURE 16.11: (a) Collection of rectangles and the block decomposition induced by the MX-CIF quad tree; (b) the tree representation of (a); the binary trees for the y axes passing through the root of the tree in (b), and (d) the NE son of the root of the tree in (b).

structure has the advantage that there is a relation between the depth of node in the tree and the size of the rectangle(s) that is (are) associated with it. Interestingly, some of the region-based solutions make use of the same data structures that are used in the solutions based on the plane-sweep paradigm.

There are three types of region-based solutions currently in use. The first two solutions use the R-tree and the R+-tree (discussed in Section 16.3) to store rectangle data (in this case the objects are rectangles instead of arbitrary objects). The third is a quad tree-based approach and uses the MX-CIF quad tree [42] (see also [47] for a related variant).

In the MX-CIF quad tree, each rectangle is associated with the quad tree node corresponding to the smallest block which contains it in its entirety. Subdivision ceases whenever a node’s block contains no rectangles. Alternatively, subdivision can also cease once a quad tree block is smaller than a predetermined threshold size. This threshold is often chosen to be equal to the expected size of the rectangle [42]. For example, Figure 16.11b is the MX-CIF quadtree for a collection of rectangles given in Figure 16.11a. Rectangles can be associated with both leaf and nonleaf nodes.

It should be clear that more than one rectangle can be associated with a given enclosing block and, thus, often we find it useful to be able to differentiate between them. This is done in the following manner [42]. Let P be a quad tree node with centroid (CX ,CY ), and let S be the set of rectangles that are associated with P . Members of S are organized into two sets according to their intersection (or collinearity of their sides) with the lines passing through the centroid of P ’s block — that is, all members of S that intersect the line x = CX form one set and all members of S that intersect the line y = CY form the other set.

If a rectangle intersects both lines (i.e., it contains the centroid of P ’s block), then we adopt the convention that it is stored with the set associated with the line through x = CX . These subsets are implemented as binary trees (really tries), which in actuality are one- dimensional analogs of the MX-CIF quad tree. For example, Figure 16.11c and Figure 16.11d illustrate the binary trees associated with the y axes passing through the root and the NE son of the root, respectively, of the MX-CIF quad tree of Figure 16.11b. Interestingly, the MX-CIF quad tree is a two-dimensional analog of the interval tree. described above. More precisely, the MX-CIF quad tree is a a two-dimensional analog of the tile tree [50] which is a regular decomposition version of the interval tree. In fact, the tile tree and the one- dimensional MX-CIF quad tree are identical when rectangles are not allowed to overlap.
